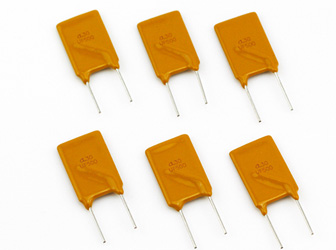

A30-500
集電通A30-500自恢復保險絲專為程控交換機、配線架設計生產的過保護器件，同時還可用于變壓器、安防設備、燈具、鎮流器、儀表、電話線路等領域。
| 型號 | Marking |
Ihold (A) |
Itrip (A) |
Vmax (V) |
Imax (A) |
Pdtyp. (W) |
Trip current (A) |
Trip time (S) |
Rimin (Ω) |
R1max (Ω) |
Data Sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A30-030 | α30UF030 | 0.30 | 0.60 | 30 | 40 | 0.44 | 1.50 | 3.00 | 0.030 | 1.600 |
 |
| A30-040 | α30UF040 | 0.40 | 0.80 | 30 | 40 | 0.45 | 2.00 | 5.00 | 0.200 | 1.300 |
|
| A30-050 | α30UF050 | 0.50 | 1.00 | 30 | 40 | 0.50 | 2.50 | 4.10 | 0.250 | 1.200 |
|
| A30-065 | α30UF065 | 0.65 | 1.30 | 30 | 40 | 0.47 | 3.25 | 5.00 | 0.200 | 0.800 |
|
| A30-070 | α30UF070 | 0.70 | 1.40 | 30 | 40 | 0.6 | 3.50 | 4.30 | 0.140 | 0.350 |
|
| A30-075 | α30UF075 | 0.75 | 1.50 | 30 | 40 | 0.6 | 3.75 | 5.20 | 0.120 | 0.420 |
|
| A30-090 | α30UF090 | 0.90 | 1.80 | 30 | 40 | 0.6 | 4.50 | 5.90 | 0.070 | 0.300 |
|
| A30-110 | α30UF110 | 1.10 | 2.20 | 30 | 40 | 0.7 | 5.50 | 6.60 | 0.050 | 0.260 |
|
| A30-135 | α30UF135 | 1.35 | 2.70 | 30 | 40 | 0.8 | 6.75 | 7.30 | 0.040 | 0.220 |
|
| A30-160 | α30UF160 | 1.60 | 3.20 | 30 | 40 | 0.9 | 8.00 | 8.00 | 0.030 | 0.180 |
|
| A30-185 | α30UF185 | 1.85 | 3.70 | 30 | 40 | 1.0 | 9.25 | 8.70 | 0.030 | 0.150 |
|
| A30-200 | α30UF900 | 2.00 | 4.00 | 30 | 40 | 1.5 | 10.0 | 12.0 | 0.030 | 0.085 |
|
| A30-250 | α30UF250 | 2.50 | 5.00 | 30 | 40 | 1.2 | 12.5 | 10.3 | 0.020 | 0.100 |
|
| A30-300 | α30UF300 | 3.00 | 6.00 | 30 | 40 | 2.0 | 15.0 | 10.8 | 0.020 | 0.100 |
|
| A30-400 | α30UF400 | 4.00 | 8.00 | 30 | 40 | 2.5 | 20.0 | 12.7 | 0.010 | 0.090 |
|
| A30-500 | α30UF500 | 5.00 | 10.00 | 30 | 40 | 3.0 | 25.0 | 14.5 | 0.010 | 0.090 |
|
| A30-600 | α30UF600 | 6.00 | 12.00 | 30 | 40 | 3.5 | 30.0 | 16.0 | 0.005 | 0.060 |
|
| A30-700 | α30UF700 | 7.00 | 14.00 | 30 | 40 | 3.8 | 35.0 | 17.5 | 0.005 | 0.050 |
|
| A30-800 | α30UF800 | 8.00 | 16.00 | 30 | 40 | 4.0 | 40.0 | 18.8 | 0.005 | 0.180 |
|
| A30-900 | α30UF900 | 9.00 | 18.00 | 30 | 40 | 4.2 | 40.0 | 20.0 | 0.005 | 0.025 |
|
